About:

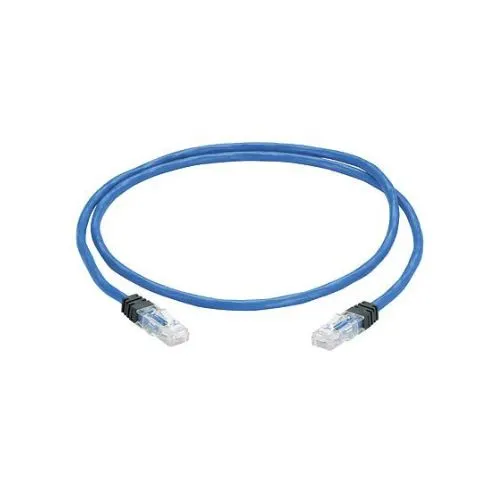

• The PanZone Cat6 UTP Zone Cord is a 10-foot, blue cable assembly constructed of 23 AWG, unshielded twisted pair (UTP), solid CMP-rated cable with high-performance TX6 PLUS modular plugs.
• Its solid conductor design ensures reliable permanent link performance.
• Additionally, it is RapidID-enabled, featuring pre-installed barcodes for simple port mapping using RapidID software.
Also Known As:
Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.
Specification:
| Product Type | Zone Cable Assembly |
| Application | Provide an efficient and cost effective way to design and deploy cabling systems in data centers and open office architecture environments |
| Conductor Gauge (AWG) | 23 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft) | 10 |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Color | Blue |
| Flammability Rating | Plenum |
| Plug Type | 8 Position |
| UPC |
074983964529 |
Features:
• 100% performance tested for wire map, next and return loss
• Centered de-embedded plug
• Integral pair manager
• Patented tangle-free latch
• Slender strain relief boot
• Robust construction
